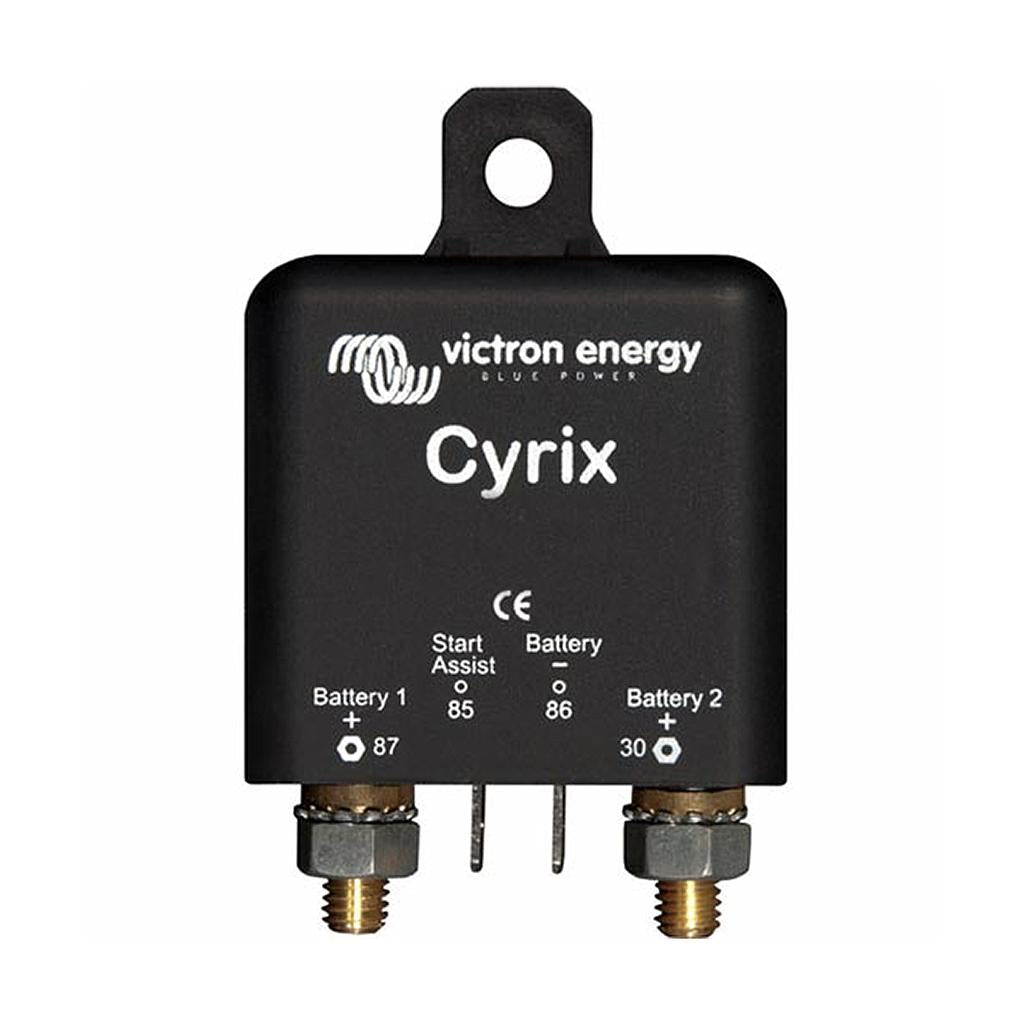

Victron Cyrix Li-Load Relay 12/24V-120A
Victron Cyrix Li-Load Relay 12/24V-120A
10 customers are viewing this product

Victron Cyrix Li-Load Relay 12/24V-120A

$92.00
$92.00

or 4 interest-free payments of  $23.00 with

Subtotal: $92.00
Description

Features:

  • Lithium-Ion Compatible
  • Intelligent Load Relay
  • Disengages Load when Control Input is Free Floating
  • 120 Amp
  • 12/24V

The LiFePO4 Battery: Preventing cell under voltage, over voltage and over temperature

The first line of protection is cell balancing. All Victron LiFePO4 batteries have integrated cell balancing. The second line of protection consists of:

  • shut down of the load in case of imminent cell under voltage, and
  • shut down or reduction of the charging current in case of imminent cell over voltage, high temperature (>50°C) or low temperature (<0°C).

The VE.Bus BMS is the core of the second protection line. However, not all loads or chargers can be controlled directly by the VE.Bus BMS. In order to shut down such loads or chargers several VE.Bus BMS controllable Cyrix switches are available.


Cyrix Li-Load:

The Cyrix-Li-load will disengage when its control input becomes free-floating. If the battery voltage recovers after disconnecting (which will happen when no other loads are connected to the battery), the output of the BMS will become high and the Cyrix will reengage after 30 seconds. After 3 attempts to reengage, the Cyrix will remain disengaged until the battery voltage has increased to more than 13V (resp. 26V or 52V) for at least 30 seconds (which is a sign that the battery is being recharged). Alternatively, a BatteryProtect can be used (advantage: very low power consumption).

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications
Continuous current and breaking capacity at 12V or 24V

120A

Breaking capacity at 48V

40A

Control input

The Cyrix engages when the control input is high (appr. Battery voltage) The Cyrix disengages when the control input is left free floating or pulled low

Connect voltage

See text

Disconnect voltage

See text

Current consumption when open

<4 mA

Protection category
IP54
Weight
0.11kg
Dimensions
46 x 46 x 80mm



Please see more details in the 'Data Sheets' tab.
