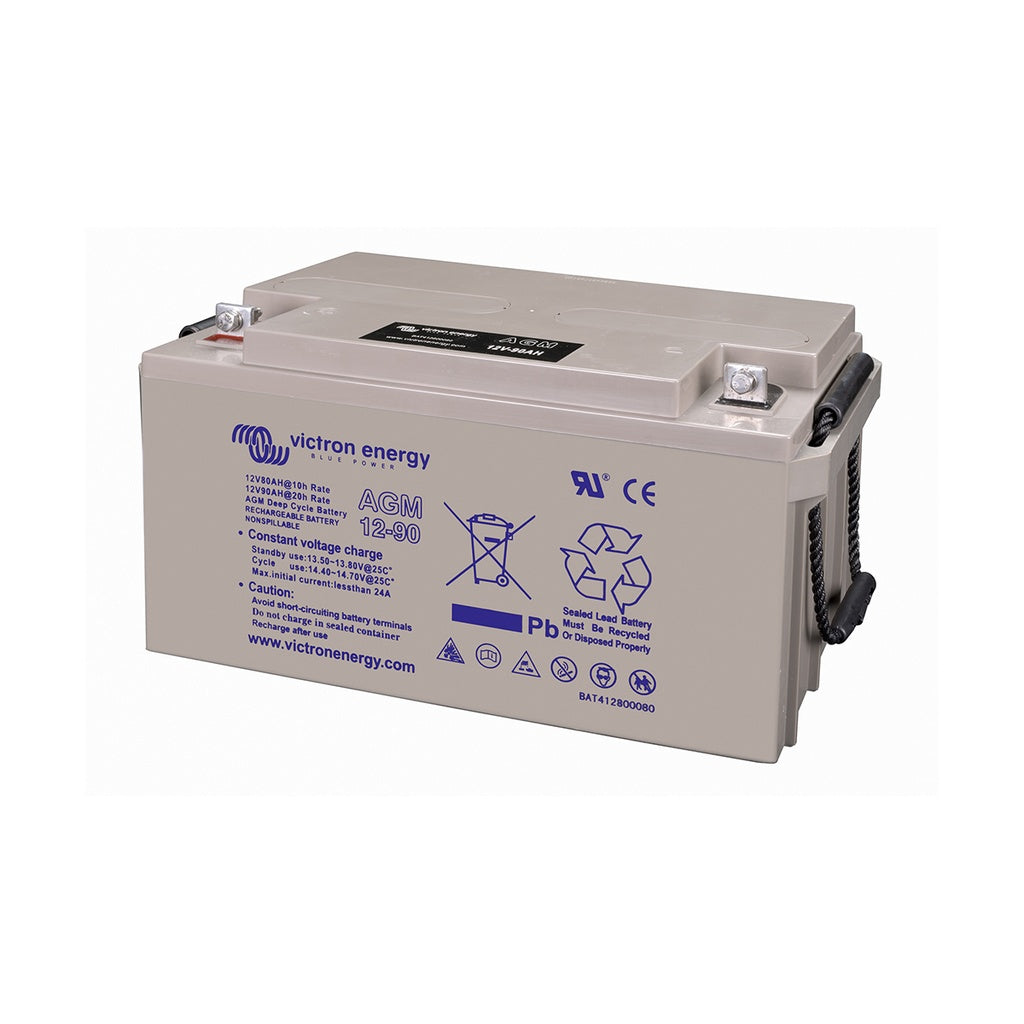

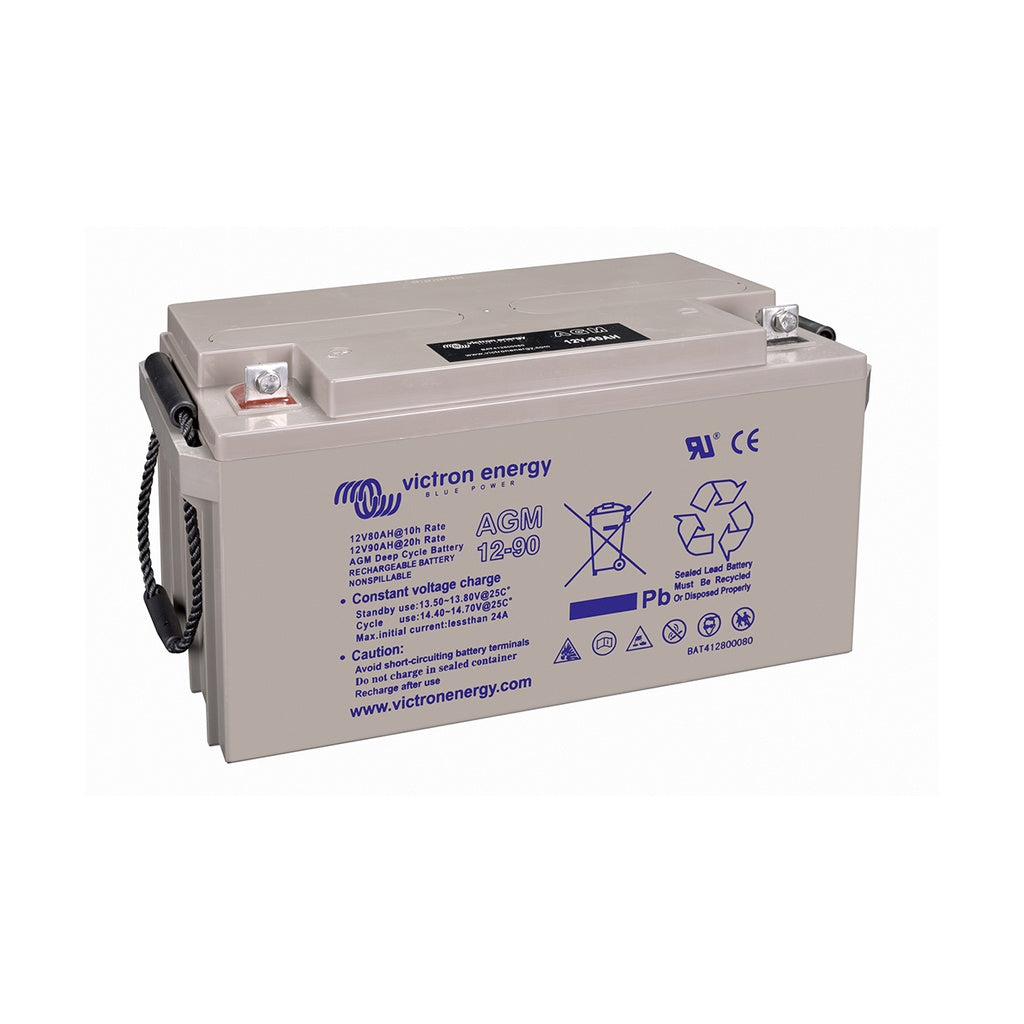

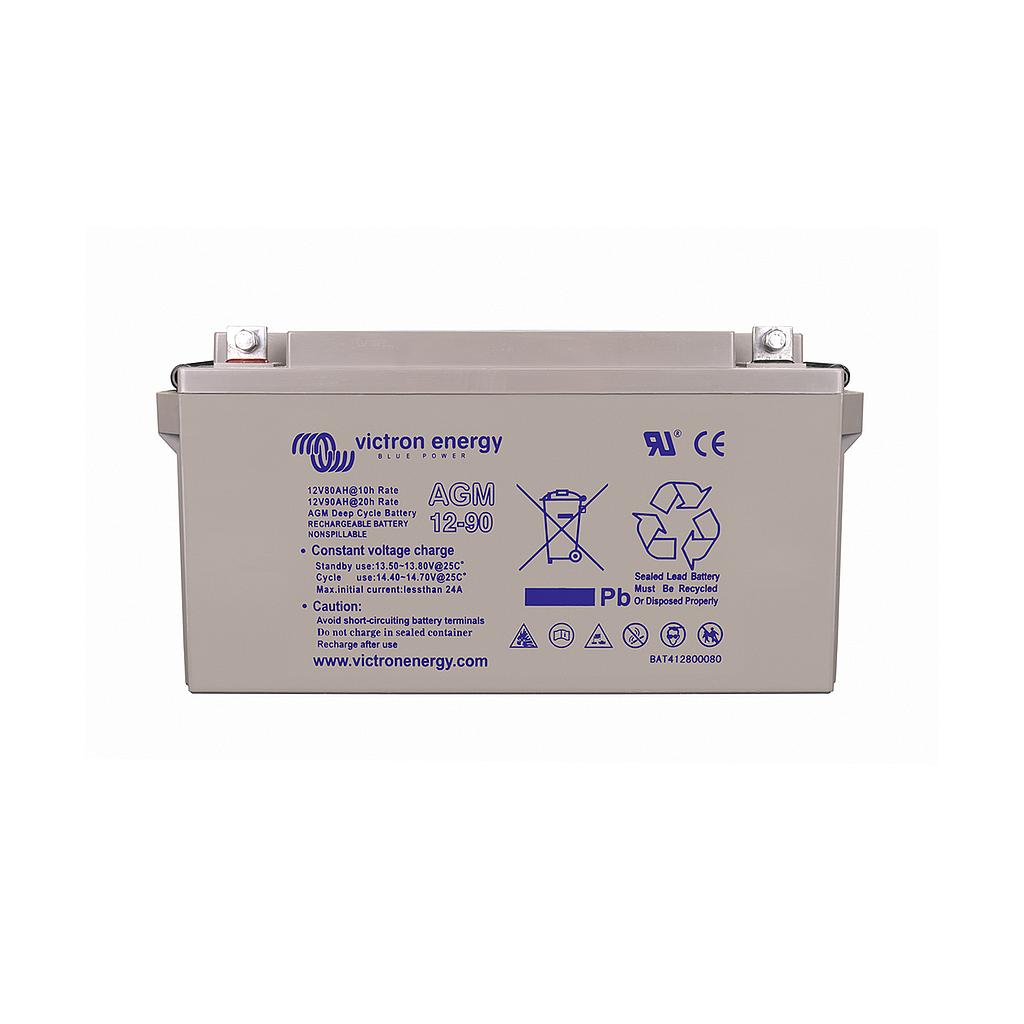

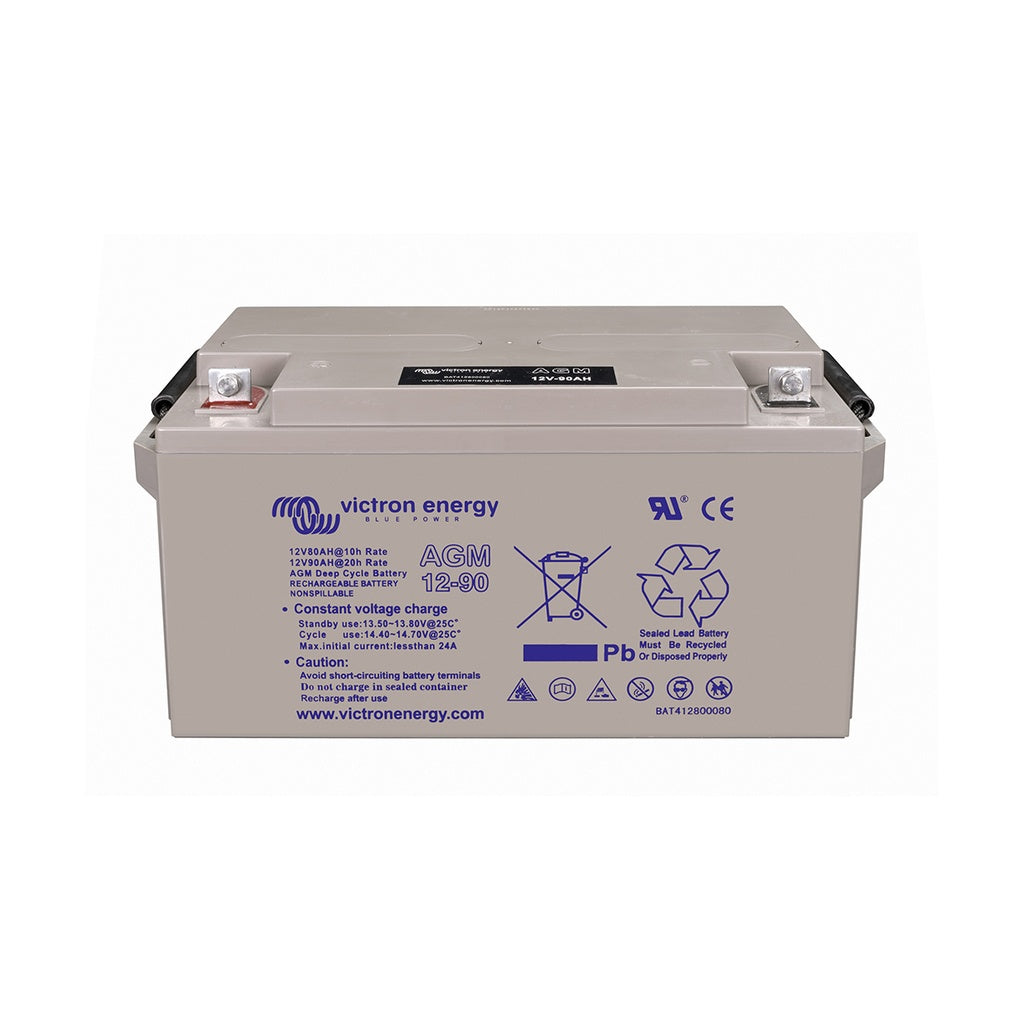

BAT412800085
Features:
The AGM range has very low internal resistance making them particularly suitable for high-current discharge applications such as for inverters, thrusters and winches.
More Product Features:
VLRA Technology:
VRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure. VRLA batteries are maintenance-free for life. AGM stands for Absorbent Glass Mat. In these batteries, the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in the book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries.
Low Self-Discharge:
Because of the use of lead calcium grids and high-purity materials, Victron VRLA batteries can be stored for long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C. Victron VRLA batteries can therefore be stored for up to a year without recharging if kept under cool conditions.
Exceptional Deep Discharge Recovery:
Victron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge. Nevertheless, repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.
Battery Discharging Characteristics:
The rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20-hour discharge, in other words: a discharge current of 0.05 C. The effective capacity decreases with increasing discharge current. Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter. Victron's AGM deep cycle batteries have excellent high-current performance and are therefore recommended for high-current applications such as engine starting. Due to their construction, Gel batteries have a lower effective capacity at high discharge currents. On the other hand, Gel batteries have a longer service life, both under float and cycling conditions.
Battery Charging: Longer Battery Life with Victron 4-Step Adaptive Charging:
Victron developed the adaptive charge curve. The 4-step adaptive charge curve is the result of years of research and testing.
The Victron four-step adaptive charge curve solves the 3 main problems of the 3-step curve:
*Please Note: This battery is a special order and requires 4-5 business days before shipping.
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
12V Deep Cycle AGM |
|
Amp Hours |
90 |
Voltage |
12 |
Absorption |
Normal: 14.2 - 14.6, Fast Recharge: 14.6 - 14.9 |
Float |
V: 13.5 - 13.8, Normal: 13.5 - 13.8, Fast Recharge: 13.5 - 13.8 |
Storage |
V: 13.2 - 13.5, Normal: 13.2 - 13.5, Fast Recharge: 13.2 - 13.5 |
Rated Capacity |
20hr discharge at 25°C |
Float Design Life |
7-10 Years at 20°C |
Cycle Design Life |
400 cycles at 80% discharge, 600 cycles at 50% discharge, 1500 cycles at 30% discharge |
Technology |
Flat Plate AGM |
Terminals |
Copper |
Weight |
27kg |
Dimensions |
350 x 167 x 183mm |
Please see more details in the 'Data Sheets' tab.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
INSERT WARRANTY INFO HERE
Victron 12V 90Ah Deep Cycle AGM Battery Data Sheet
Victron 12V 90Ah Deep Cycle AGM Battery Warranty Sheet
