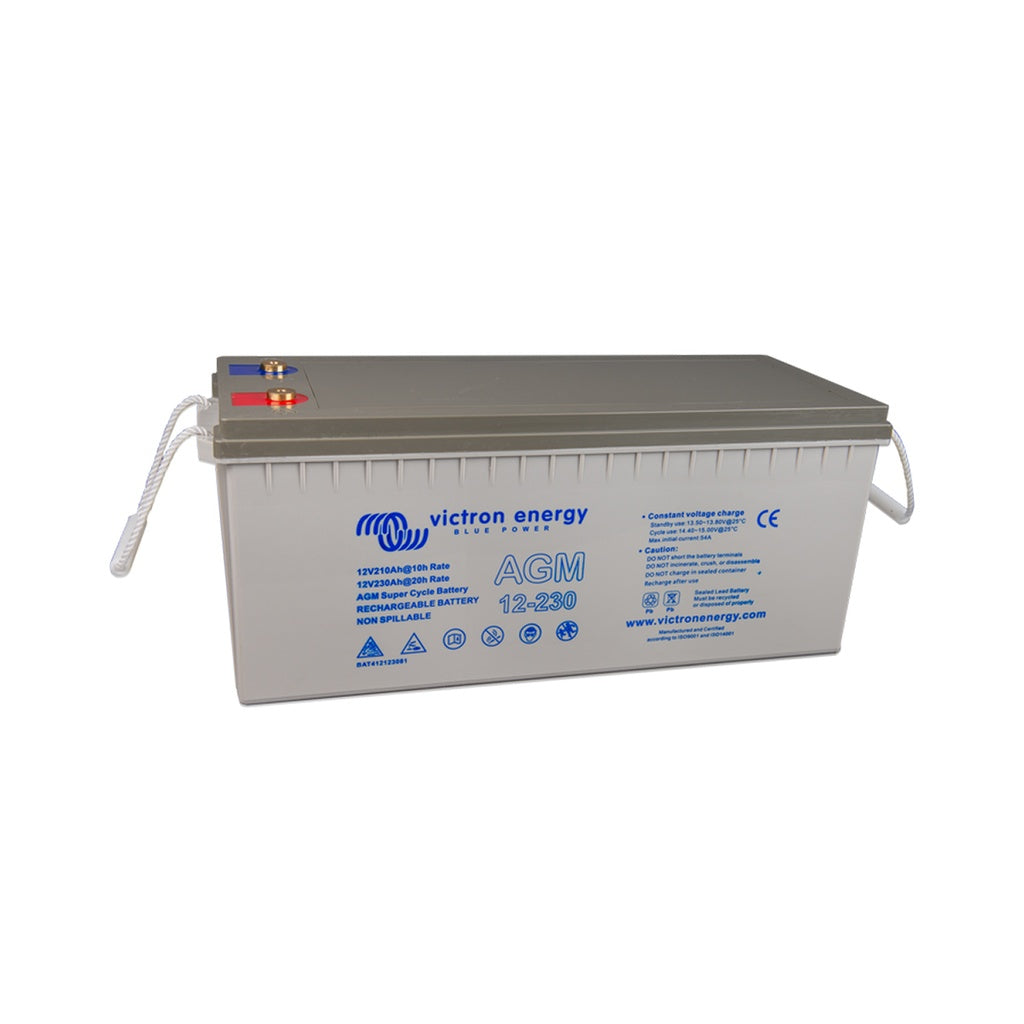

AGM Battery | Victron | Victron 12V 230Ah Super Cycle AGM Battery

Description

Features:

• Absorbed Glass Mat (AGM) Battery
• Valve Regulated Lead Acid (VRLA) Technology
• 60 Amp Hours
• 12 Volts
• 100% Depth of Discharge Performance


The AGM Super Cycle batteries are the result of recent battery electrochemistry developments. The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge.

More Product Features:

Exceptional 100% Depth of Discharge (DoD) Performance:

Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles. The tests consist of a daily discharge to 10.8V with I = 0.2C₂₀, followed by approximately two hours rest in a discharged condition, and then a recharge with I = 0.2C₂₀. The two-hour rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery. We recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60-80% DoD is expected.

Smaller and Lighter:

An additional advantage of the new chemistry is a slightly smaller size and less weight compared to the standard deep-cycle AGM batteries.

Low Internal Resistance:

The internal resistance is also slightly lower compared to the standard deep-cycle AGM batteries.

Cycle Life:

≥ 300 cycles @ 100% DoD (discharge to 10.8V with I = 0.2C₂₀, followed by approximately two hours rest in a discharged condition, and then recharge with I = 0.2C₂₀)

≥ 700 cycles @ 60% DoD (discharge during three hours with I = 0.2C₂₀, immediately followed by recharge at I = 0.2C₂₀)

≥ 1000 cycles @ 40% DoD (discharge during two hours with I = 0.2C₂₀, immediately followed by recharge at I = 0.2C₂₀)

*Please Note: This battery is a special order and requires 4-5 business days before shipping.

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Please see more details in the 'Data Sheets' tab.

Delivery

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

INSERT WARRANTY INFO HERE

Data Sheets

Victron 12V 230Ah Super Cycle AGM Battery Data Sheet

Victron 12V 230Ah Super Cycle AGM Battery Warranty Sheet
