DESCRIPTION

This 20A DC to DC Charger is designed to charge secondary batteries while driving using the primary battery connected to the alternator. It is able to charge: Flooded, Gel, AGM, and Lithium batteries using multi-stage charging.

KEY FEATURES

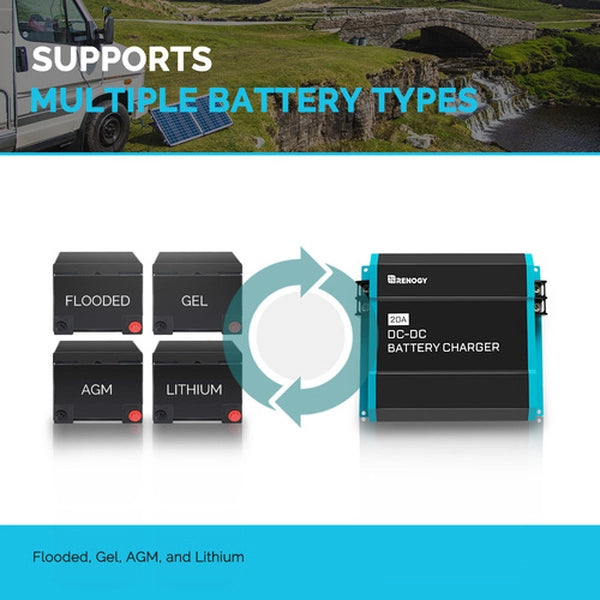

Multi-Chemistry Battery Types: AGM, Flooded, Gel, and Lithium

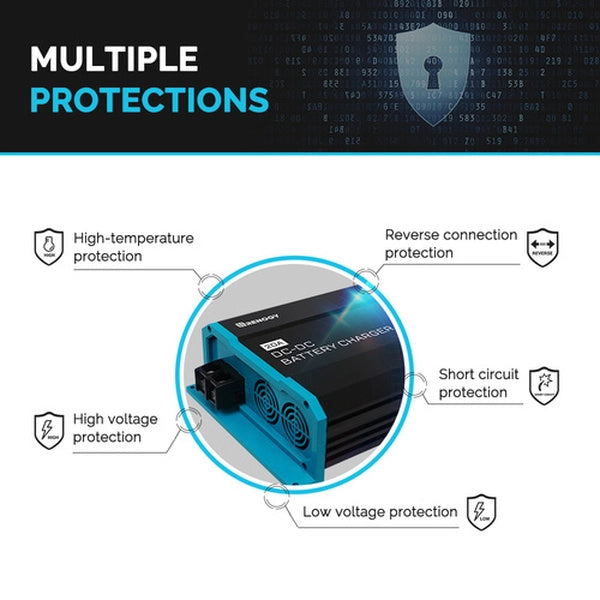

Smart Protection Features: Over-voltage safety, Overheat protection, and Reverse polarity protection
Battery Input and Output Isolation

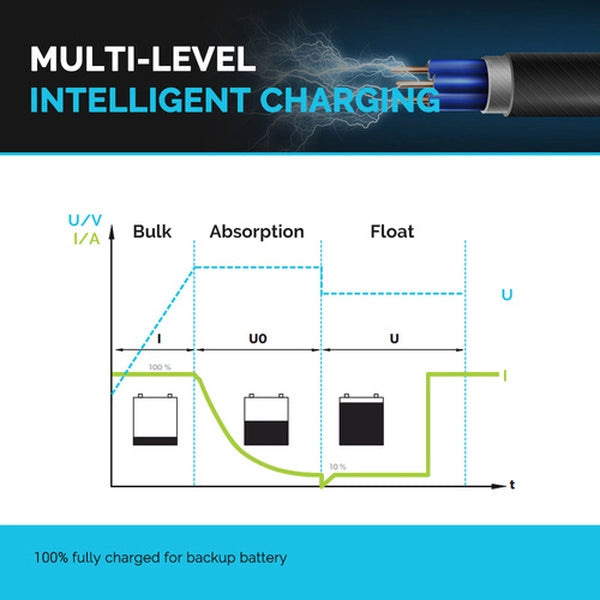

3-phase Charging: Bulk, Boost, and Float
Compact, sturdy design, built tough for all conditions
Increases run time of loads, such as fridges and lights
Overcomes voltage drop caused by long cable runs
Prolongs Battery Life

PACKAGE INCLUDES

20A DC to DC Battery Charger 1 x

SPECIFICATION

RENOGY 20A DC TO DC BATTERY CHARGER
Nominal Voltage: 12V	Rated Charge Current: 20A
Output: 250W	Idle Power Consumption: <0.4A
Input Voltage Range: 8V-16V	Equalization Voltage: N/A
Float Voltage: 13.2-13.8v	Boost Voltage: 14.1-14.7v
Operating Temperature: -20°C to +50°C	Dimensions: 8.31 x 6.89 x 2.68 inches / 21.1 x 17.5 x 6.8 cm
Weight: 2.93lbs / 1.33kg
Certifications：
CE	YES
ROHS	YES

WARRANTY INFORMATION

Accessories	1-year material warranty
