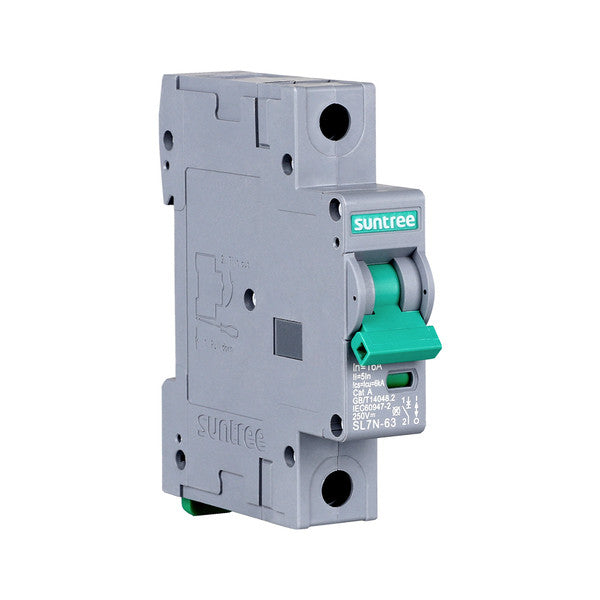

Circuit Protection | Renogy | 10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker

DESCRIPTION The Suntree DC Miniature Circuit Breaker is designed to protect DC electrical installations against overloads and... Read More
$19.99
$19.99
Vendor: Renogy
SKU: SUNDCCB10MN1P-AU
Availability: Many In Stock
Subtotal: $19.99

30-Day Money-Back Guarantee

Australian Phone Support

Locally-Based Australian Stock

Price Match Guarantee

DESCRIPTION

The Suntree DC Miniature Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits, with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The built-in indicator window helps identify the contact position of the circuit breaker at a glance. The buckle design enables easy installation on the standard DIN rail.

KEY FEATURES

  • DOUBLE SECURITY

        Equipped with both the thermal and magnetic tripping mechanism for reliability and safety.

  • SAFE TO USE

        Offers reversible connection for worry-free wiring and bidirectional protection.

  • DURABLE FOR USE

        After the circuit breakers is disconnected, only reset is needed and there will be no damage.

  • EASY TO SEE

        Built-in indicator window helps identify the contact position.

  • QUICK TO INSTALL

        Easily install on the standard DIN rail with the buckle design

PACKAGE INCLUDES

10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker

10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker

1 x





SPECIFICATION


10A /16A /32A /50A /63A 1P DC MINIATURE CIRCUIT BREAKER
Rated Insulation Voltage 1250V
Rated Operating Voltage 250V
Rated Frame Current 63A
Rated Current 10A /16A /32A /50A /63A
Number of Poles 1
Operating Short-Circuit Breaking Capacity 6KA
Ultimate Short-Circuit Breaking Capacity 6KA
Rated Impulse Withstand Voltage 6KV
Mechanical Life 20000 Times
Electrical Life 10000 Times (<125VDC)
Rated Non-Tripping Current 10.5A /16.8A /33.6A /52.5A/ 66.15A (≥1h)
Rated Tripping Current 13A /20.8A /41.6A /65A/ 81.9A (<1h)
Rated Instantaneous Tripping Current 60A /96A /192A /300A /378A (<0.1s)
Trip Mechanism Thermal-Magnetic
Protection Rating IP20
Damp Heat Resistance Type 2
Operating Relative Humidity ≤95%
Operating Temperature Range -22~158  (-30~70)
Storage Temperature Range -40℉~185℉ (-40℃~85℃)
Installation Method DIN Rail
Conductor Size 14 AWG~4 AWG
Recommended Terminal Torque 17.7 inch·lbs ~20.4 inch·lbs (2 N·m ~2.3 N·m)
Dimension 3.2 x 3.0 x 0.7 in (82 x 76 x 18 mm)
Weight 4.2 oz (120 g)


WARRANTY INFORMATION

Material and workmanship warranty 1.5 Years
