Control/Monitor | Renogy | BT-2 Bluetooth Module for Renogy Products w/ RS485 Port
$45.99
or
4 interest-free payments of
$11.49
with
No credit check
SKU: RCM-BT2-AU
WHY BUY FROM ZERO GRID?
Just me, Landon. Family run. No big corp BS.
My bus runs on this gear. I only sell what I’d use myself.
I’m your sparky. No call centres. No scripts.
Stuff up? Talk to me. I’ll sort it. No overseas runaround.
This is us with 'Sonny' our off grid bus home. Living the dream, slowly travelling Aus
Need a hand? Book a free 10 min chat with me (Landon) →
DESCRIPTION

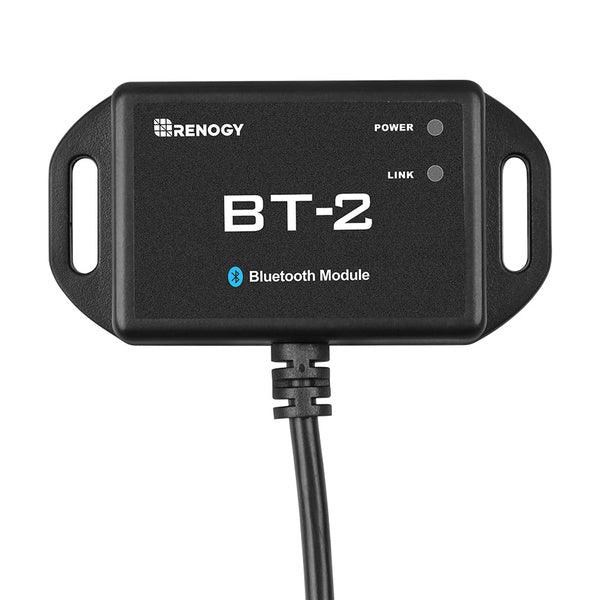

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.
The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smartphone or tablet.
Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).
KEY FEATURES
-
Precise Control Over Your Devices
Compatible with all Renogy RS485 communication port products includes the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, and Dual DC-DC MPPT Battery Charger. -
Real-time Insight
Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication. -
User-friendly
Easily connect the Bluetooth Module to the RS485 communication port, and follow the App instructions. The Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 82ft.
DOWNLOAD LINKS
PACKAGE INCLUDES
|
BT-2 Bluetooth module
1 x
|
SPECIFICATION
| SPECIFICATIONS | |
|---|---|
| Communication Protocol: RS485 | Port Type: RJ45 |
| Input Voltage: 5V or 12V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤82ft | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in） | Operation Temperature: -4°F to 185°F (-20℃~85℃) |
| Weight: 130g (4.58oz) |
WARRANTY INFORMATION
| Material Warranty | 1-year |
CERTIFICATION
| FCC Class B Part 15 Compliant | Yes |
