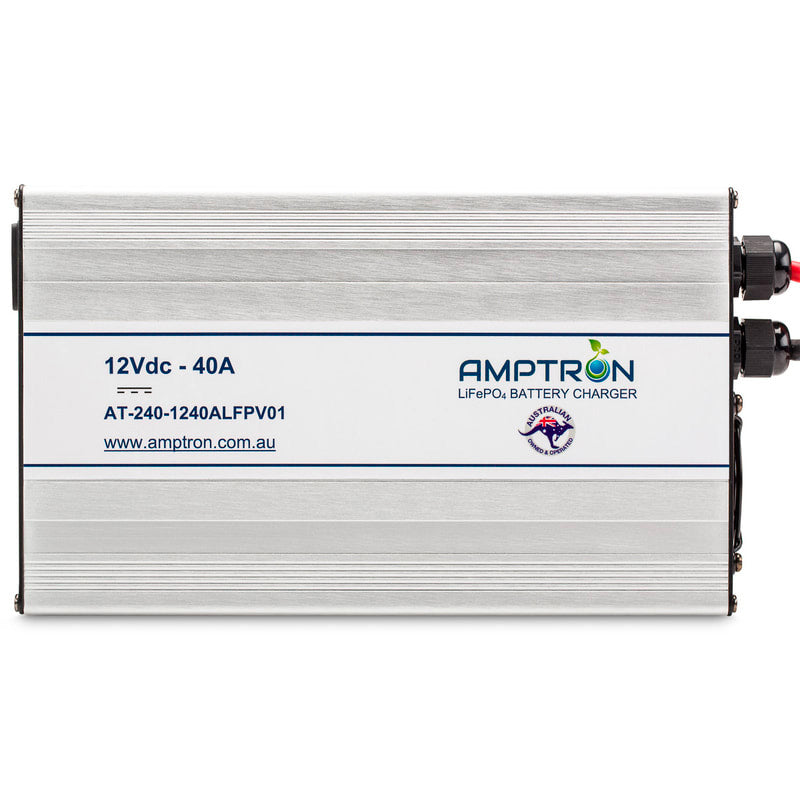

AC-DC 12V 40A Lithium LiFePO4 Battery Charger c/w battery wakeup feature
AC-DC 12V 40A Lithium LiFePO4 Battery Charger c/w battery wakeup feature
10 customers are viewing this product

Battery Charger | Amptron | AC-DC 12V 40A Lithium LiFePO4 Battery Charger c/w battery wakeup feature

AT-240-1240ALFPV01B

$385.00
$385.00

or 4 interest-free payments of  $96.25 with

Subtotal: $385.00
Description

AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.

The 12V 40A model charger operates from mains AC 200-264V as input, supplying up to a large 40A charging output suitable for nominal 12V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.

Specifications
Item
Specification
Description/Remark
Model
AT-240-1240ALFPV01B
AC/DC ​12V 40A LiFePO4 Battery Charger + Battery Wakeup
Input Voltage
min 200Vac to max 260Vac
Input Power
Max 754W
Constant charge voltage
Vdc min 14.3V to max 14.9V
Constant charge current
Min 38A to max 42A
Charge complete current
Vdc min 3.0A to max 3.4A
8% CC
Ripple voltage
250mV
Efficiency
83%
At full load
Product Dimensions
L-220mm x W-135mm x H-70mm
​Foot Mount Bracket = L-14mm on each side of charger body
Packaged Weight
3Kg

Please see more details in the 'Data Sheets' tab.

Delivery

We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.

Warranty

AC-DC 12V 40A Lithium LiFePO4 Battery Charger c/w battery wakeup feature Warranty Sheet

Data Sheets

AC-DC 12V 40A Lithium LiFePO4 Battery Charger c/w battery wakeup feature Specifications
